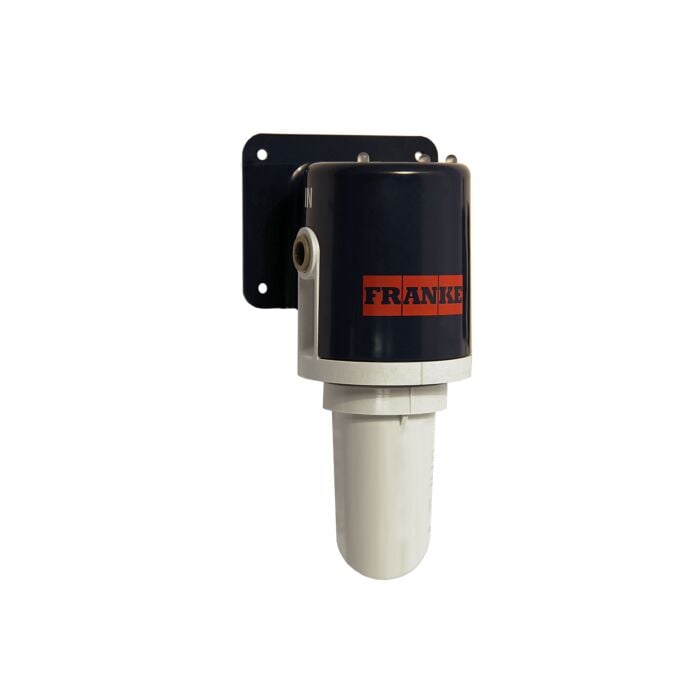

Hoshizaki HS-5282 Ec03 Ice Ozone Low Flow System-

Manuals:

Hoshizaki EcO3 Ice Ozone System Specification Sheet

Hoshizaki EcO3 Ice Ozone System Instruction Manual

Features & Specifications:

• Dimensions: 3-4/5″ W x 3-3/5″ D x 8″ H
• EcOȝIce Sanitation Low Flow System Ideal sanitation system for Low Flow rate icemakers (0.03-0.34 gpm)
• Ozone treated water sanitizes the ice machine, bin and related parts
• Reduces downtime and labor for routine cleanings
• Vastly reduces the risk of foodborne illness
• Operator replacable, twist-on electrolytic cartridge lasts 6-12 months Indicator lamp shows when it’s time to replace the cartridge
• The device continuously treats incoming water used by ice machines, killing bacteria, yeast and mold in the ice-making path from beginning to end.
• Compatible with the following icemakers (sold separately): AM-50, KM-61, KM-101, KM-151, F-300B, F-330B, F-500B, F-801M, F-1002M, F-1501M, F-2001M
• EcOȝIce Low Flow System, Max.
• Flow Rate: 0.03-0.34 gpm
• Working Pressure: 20 – 125 psi
• Temperature: 40 – 86°F
• Capacity: 50,000 gal
• Electrical: 100-240/50-60/1
• 1.25Amps Max, 30 Watts Max
• 5′ cord with NEMA 5-15 plug
