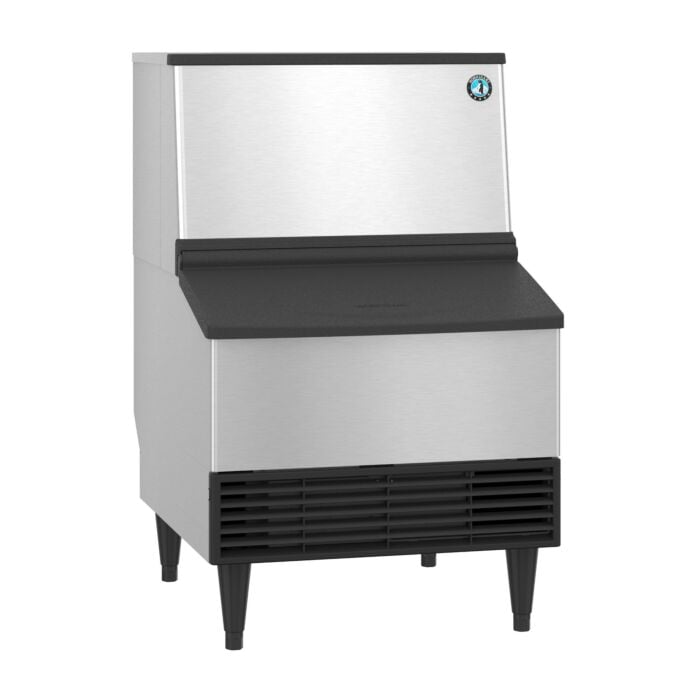

Hoshizaki KM-231BAJ, Crescent Cuber Ice maker, Air-cooled, Built in Storage Bin

The KM-231BAJ is capable of producing approximately 213 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 80 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-231BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-230BAJ.

Features & Specifications

• Dimensions: 24″ W x 28″ D x 39″ H
• Up to 213 lbs of ice produced per 24 hours
• Up to 80 lbs of built-in storage capacity (2.7ft3)
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Front in, front out airflow
• EverCheck™ alert system
• CycleSaver™ design
• Ice bin opening is ADA compliant
• R-404A refrigerant (11.3 oz. / 320 g)
• Heat Rejection:3750 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 6.5 amps (15 Amp Max fuse)
• 8.4 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.
