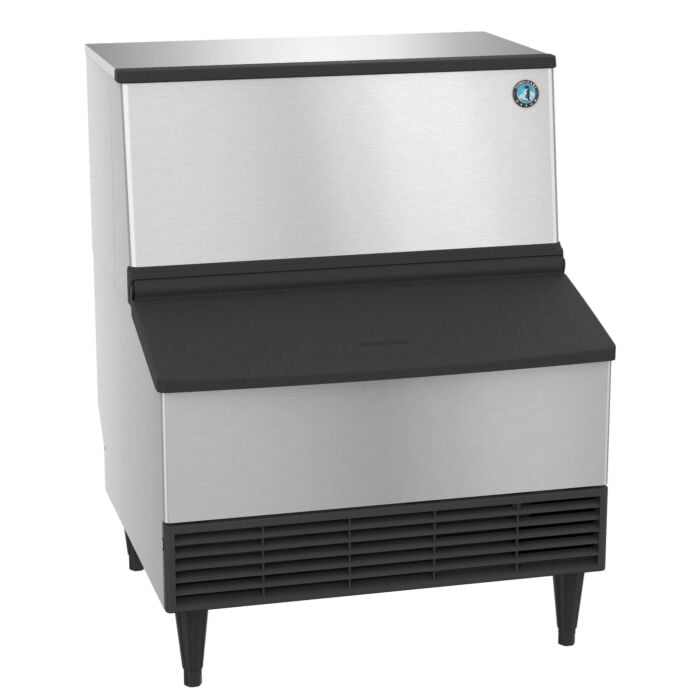

HOSHIZAKI KM-301BAJ Crescent Cuber Ice Machine, Air-cooled, Built in Storage Bin

The KM-301BAJ is capable of producing approximately 290 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 100 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-301BAJ requires a Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug electrical connection. Compatible bins & dispensers, sold separately: . Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-300BAJ.

Features & Specifications:

• Dimensions: 30″ W x 28″ D x 39″ H
• Up to 290 lbs of ice produced per 24 hours
• Up to 100 lbs of built-in storage capacity (3.3ft3)
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately:
• EverCheck™ alert system
• CycleSaver™ design
• Ice bin opening is ADA compliant
• R-404A refrigerant (13.4 oz. / 380 g)
• Heat Rejection:4200 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8.4 amps (15 Amp Max fuse)
• 7.1 kwh/100 [email protected] 90/70
• Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.
