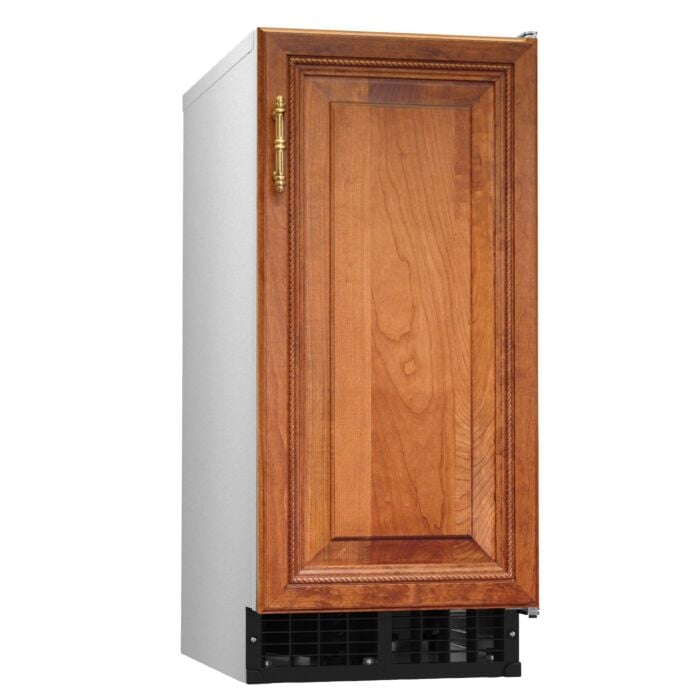

HOSHIZAKI AM-50BAJ-DS, Top Hat Cuber Icemaker, Air-cooled, Custom Cabinet Ready-55 lb/day

The AM-50BAJ-DS is capable of producing approximately 51 lbs of Top Hat style ice cubes per day.

This compact undercounter Top Hat Ice Maker is the perfect addition to any hotel suite, office breakroom, or residential kitchen. The AM-50BAJ-DS is capable of producing approximately 51 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. The AM-50BAJ-DS also features a door specifically designed to accommodate custom cabinetry, allowing the unit to blend seamlessly with the surrounding decor. Drain pump not included.



Features & Specifications:



  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 51 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity
  • Produces top hat ice cubes
  • Undercounter design is less than 34″ tall
  • Front in, front out airflow
  • UL approved for outdoor use
  • Easily disassembled water circuit for easy cleaning
  • (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
  • R-134a refrigerant (4.2 oz. / 120 g)
  • Heat Rejection:1900 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 95°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 3.8 amps (15 Amp Max fuse)
  • 17 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Two Years: Parts & Labor warranty on entire machine.
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
More Information
SKU AM-50BAJ-DS
UPC 736724071926
Price $0.00
Ice Produced 55 lb/day
