HOSHIZAKI AM-50BAJ Top Hat Cube Ice Maker, Air-cooled, Self Contained Built in 22lb Storage Bin---

This compact undercounter Top Hat Ice Maker is the perfect addition to any hotel suite, office breakroom, or residential kitchen. The AM-50BAJ is capable of producing approximately 51 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. The shorter height of the AM-50BAJ complies with the Americans with Disabilities Act, making this one of the most accessible undercounter ice makers on the market. Perfect for fitting into tight spaces. Drain pump not included.

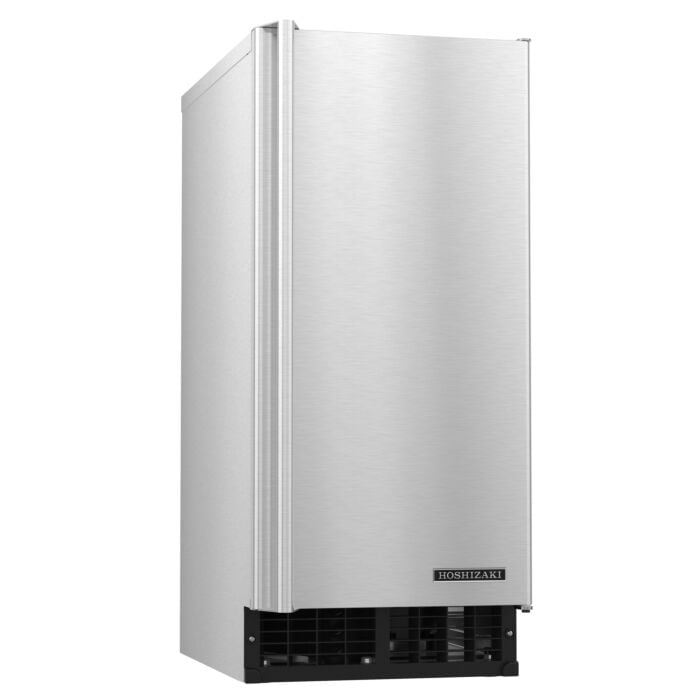

*PLEASE NOTE* Customer must provide own custom cabintry. Picture does not portray appearance of the unit.

Features & Specifications:

• Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
• Up to 51 lbs of ice produced per 24 hours
• Up to 22 lbs of built-in storage capacity
• Produces top hat ice cubes
• Undercounter design is less than 34″ tall
• Front in, front out airflow
• UL approved for outdoor use
• Easily disassembled water circuit for easy cleaning
• Accessory – HS-5061 drain pump assembly
• R-134a refrigerant (4.2 oz. / 120 g)
• Heat Rejection:1900 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 95°F
• Water pressure: 7 – 113psig
• Voltage range: 104 – 127V
• 3.8 amps (15 Amp Max fuse)
• 17 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Two Years: Parts & Labor warranty on entire machine.
• One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
