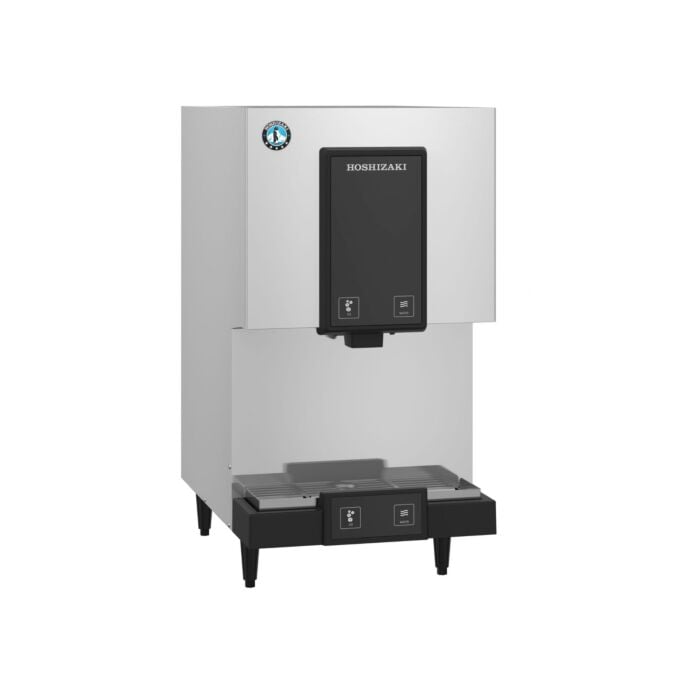

Hoshizaki DCM-271BAH, Cubelet Ice and Water Dispenser, Air-cooled, Built in Storage Bin

The DCM-271BAH is capable of producing approximately 257 lbs of cubelet nugget-style ice cubes per day. The built-in storage bin will hold up to 10 lbs of ice* at a time. This air-cooled icemaker has a push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ – every 24 hrs, it performs a 15 min purge to clean itself and it is protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this cubelet ice and water dispenser. Stand not included.

*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Features and Specifications

• Dimensions: 16-5/8″ W x 24-1/4″ D x 31-3/4″ H
• Up to 257 lbs of ice produced per 24 hours
• Up to 10 lbs of built-in storage capacity (0.3ft3)
• Produces mini cubelet nugget-style ice
• Durable stainless steel drain pan grate
• Place on countertop or optional stand: SD-271
• Push button operation that dispenses ice or water
• Easy-cleaning removable spout
• 2-second flush cycle every hour
• Advanced CleanCycle24™ – every 24 hrs, it performs 15 min purge to clean itself
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (14.8 oz. / 420 g)
• Heat Rejection: 3,300 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8.5 amps (15 Amp Max fuse)
• 6.9 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine
• Five Years: Parts warranty on Compressor, air-cooled condenser coil
