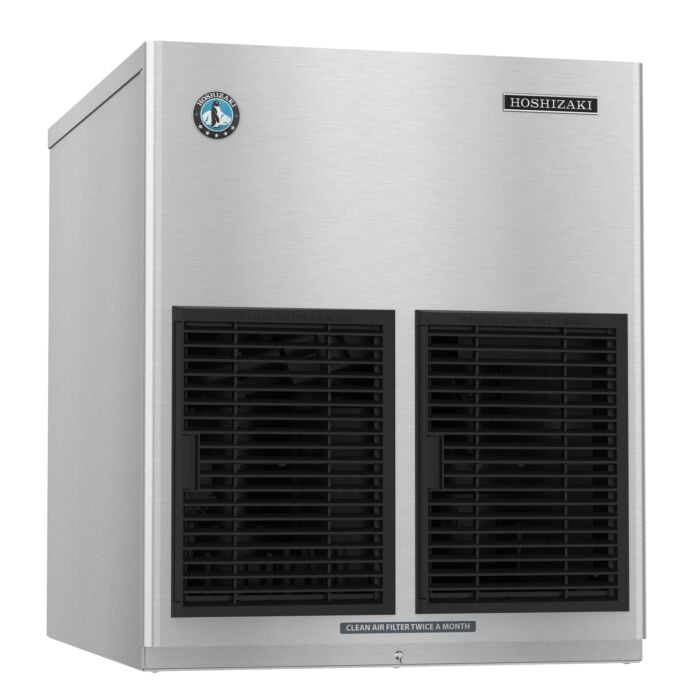

The F-1002MAJ is capable of producing approximately 980 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Slim Line Modular ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MAJ requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.
Features & Specifications:
• Dimensions: 22" W x 27-3/8" D x 25-15/16" H
• Shipping weight: 210 lbs
• Up to 980 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Slim, 22"W wide profile
• Air-cooled, Slim Line Modular
• Produces flaked ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300 B-1500 B-1650.
• 2 second rinse every hour to remove sediment
• Advanced CleanCycle24™ design
• R-404a refrigerant
• Designed for long life dependability
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 15.23 amps (20 Amp Max fuse)
• 4.36 kwh/100 [email protected] 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts on Compressor, air-cooled condenser coil.
