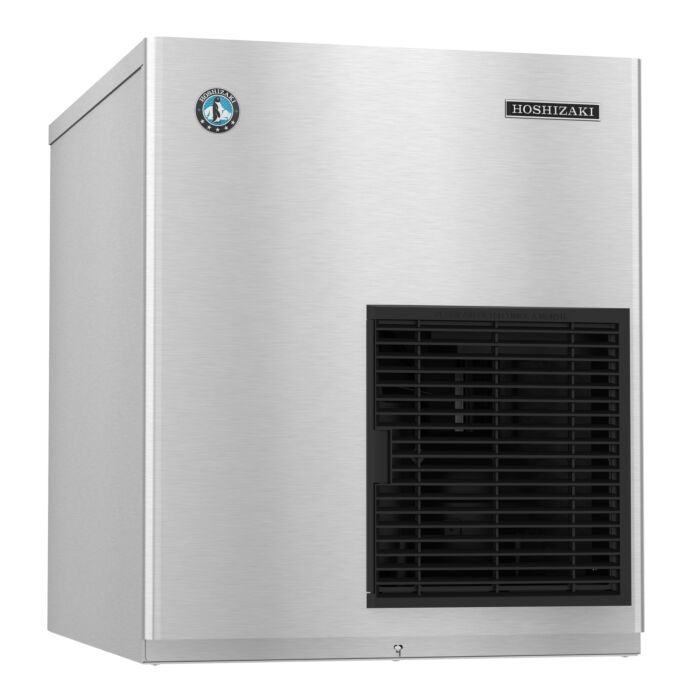

Hoshizaki F-801MWJ Flaked Ice Maker, Water-cooled, Slim Line Modular

The F-801MWJ is capable of producing approximately 665 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Slim Line Modular ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MWJ requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500 B-1650.

*PLEASE NOTE* Bin not included and this is a WATER-COOLED ice machine.

F-801MWJ Specification Sheet

F-801MWJ Service Manual

F-801MWJ Instruction Manual

F-801MWJ Parts Manual

Features & Specifications:

• Dimensions: 22″ W x 27-3/8″ D x 26″ H
• Up to 665 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces flaked ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately:B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500 B-1650
• 2 second rinse every hour to remove sediment for cleaner ice
• Advanced CleanCycle24™ design
• R-404a refrigerant
• Infrared bin control for easy cleaning and reliability
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 10.5 amps (15 Amp Max fuse)
• 4.1 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Infrared bin control for easy cleaning and reliability
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts warranty on Compressor, air-cooled condenser coil.
