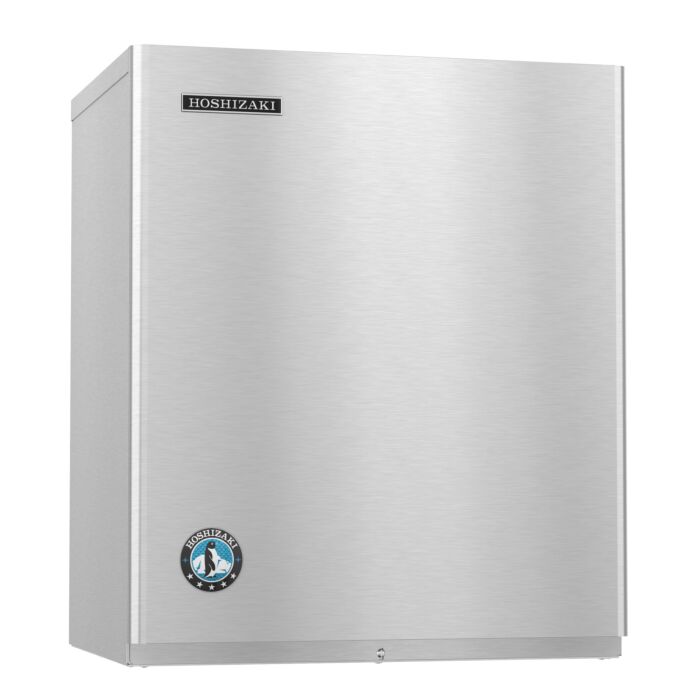

Hoshizaki FS-1022MLJ-C Cubelet Ice Machine, Remote-cooled, Serenity Series

The FS-1022MLJ-C is capable of producing approximately 830 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled, Serenity Series icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1022MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 22″ W x 16-1/2″ D x 26″ H
• Up to 830 lbs of ice produced per 24 hours
• Remote-cooled, Serenity Series
• Produces small cubelet nugget-style ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: Beverage Dispensers
• Ice removed from evaporator after every shut down cycle
• Advanced CleanCycle24™ design
• Reduces heat in the kitchen and minimizes noise
• R-404A refrigerant (4 oz. / 113 g)
• Heat Rejection:9800 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 9.3 amps (20 Amp Max fuse)
• 5.96 kwh/100 lbs.@ 90/70
• Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
• Five Years: Parts warranty on Compressor, air-cooled condenser coil.
