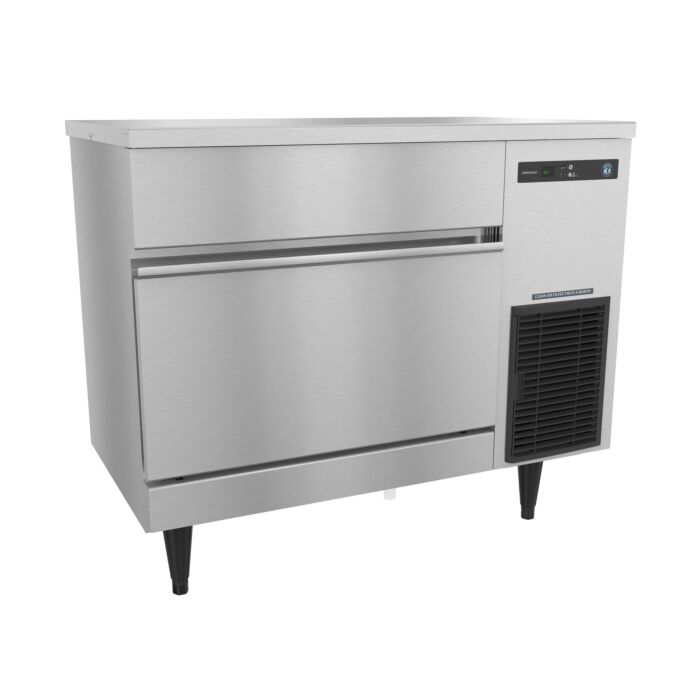

HOSHIZAKI IM-200BAA Gourmet Ice Maker Air-cooled Built in 50lb Storage Bin REPLACED
Newer model available
This model has been replaced by the IM-200BAK
The current model that does the same job, in stock and shipping now.
SKU
IM-200BAA
The IM-200BAA is replaced by IM-200BAB
Recommended replacement
- Ships free
- Full warranty
- 0% APR
Is the newer model a direct swap?
It is the model Hoshizaki lists as the successor, so it does the same job at a comparable ice output. Footprint, electrical supply and water connections can still differ between generations - call us with your install and we will check it against the new unit before you order.
Can I still buy this one?
Only while our remaining stock lasts. Once it is gone it is not restocked, and parts for a retired model get scarcer and more expensive from that point on.
What happens to my warranty and parts?
The newer model ships with a full factory warranty and a parts supply that is not winding down. That is the practical difference between the two, more than the ice output is.
Not sure which size you need?
Size on ice used per day, not on the old model number. Covers, drinks served and kitchen temperature all move the figure. Call us with what you run and we will work it out with you.
Still stuck? Call 1-800-965-0081
The IM-200BAA is capable of producing approximately 200 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Self Contained, Built in Storage Bin ice maker features the EverCheck™ alert system which detects potential problems and notifies the operator before excessive maintenance or repair can occur.
Features & Specifications:
• Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ”
• Shipping weight: 203 lbs
• Up to 200 lbs of ice produced per 24 hours
• Up to 50 lbs of built-in storage capacity
• Produces individual square cubes
• Durable stainless steel exterior
• Min Clearance: 0″ on top, 2″ on left side, 6″ on right side, 2″ rear
• EverCheck™ alert system
• Easily disassembled water circuit for easy cleaning
• R-134a refrigerant
• 5′ power cord with NEMA 5-15P plug
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 7.6 amps (15 Amp Max fuse)
• 8.3 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.
| SKU | IM-200BAA |
|---|---|
| Price | $0.00 |
