Hoshizakiicemaker Wholesale Ice Machines and Parts

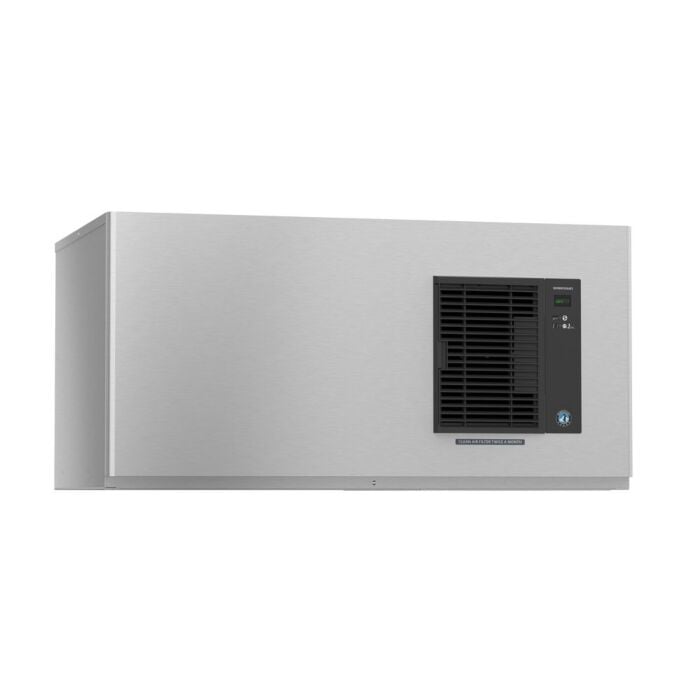

The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable ice maker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAA requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.
Features & Specifications:
• Dimensions: 44” W x 27-5/8” D x 21-3/4” H
• Shipping weight: 273 lbs
• Up to 500 lbs of ice produced per 24 hours
• Stack 3 units for 3x the ice production
• Slim, 44”W wide profile
• Air-cooled, Stackable
• Produces indvidual square cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-700, B-800, B-900
• EverCheck™ digital control system with LED display
• Clean indvidiual square ice cubes
• R-404a refrigerant
• Panels easily removed and all components accessible for service
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 11.5 amps (20 Amp Max fuse)
• 5.45 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• ENERGY STAR Qualified
• Three Years: Parts & Labor on entire machine. (Serial numbers VxxxxxJ and after).
• Five Years: Parts on Compressor, air-cooled condenser coil.
SKU | IM-500SAA |
---|---|
Price | $0.00 |
