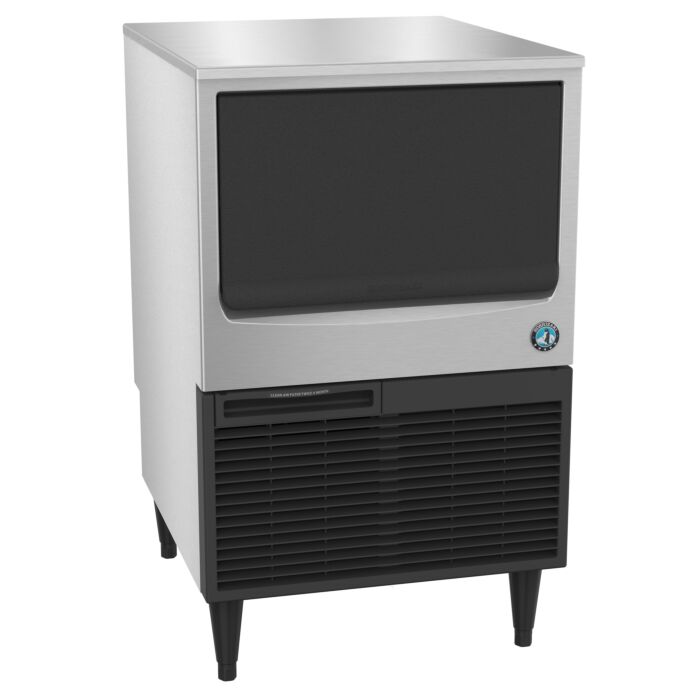

HOSHIZAKI KM-151BWH Ice Maker Water-cooled Self Contained Built in 78lb Storage Bin REPLACED

This Undercounter Water-cooled, Self Contained, Built in Storage Bin ice maker stores up to 78 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-151BWH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 23-3/4” W x 28-1/4” D x 39” H
• Up to 146 lbs of ice produced per 24 hours
• Up to 78 lbs of built-in storage capacity
• Slim, 23- 3/4 “W wide profile
• Water-cooled, Self Contained, Built in Storage Bin
• Produces crescent ice
• Slide in door with durable stainless steel exterior
• Ice maker with built in storage
• EverCheck™ alert system
• CycleSaver™ design
• R-134a refrigerant
• Power switch accessible without panel removal
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 6.8 amps (15 Amp Max fuse)
• 7.3 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
