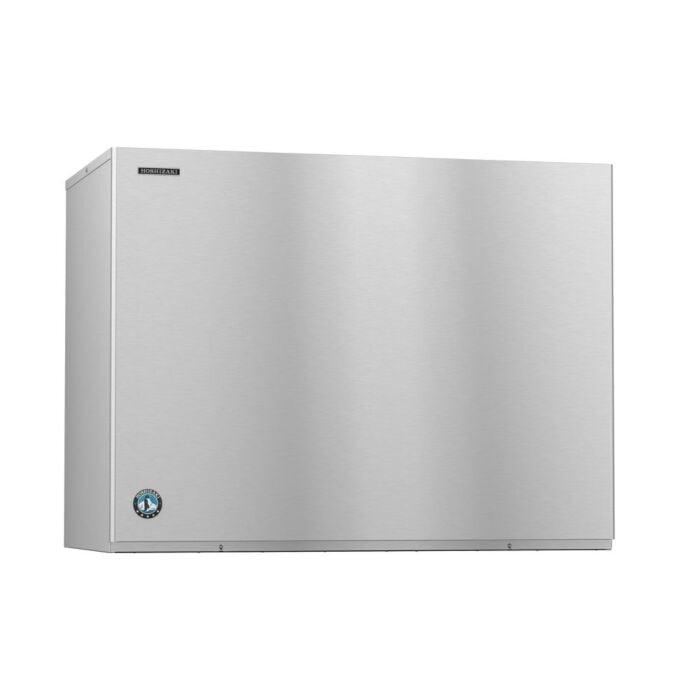

Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase ice maker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1900SWJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
*PLEASE NOTE* Ice bin not included and this is a WATER-COOLED ice machine.
KM-1900SWJ3 Specfication Sheet
KM-1900SWJ3 Service Manual
KM-1900SWJ3 Instruction Manual
KM-1900SWJ3 Parts Manual
Features & Specifications:
• Dimensions: 48” W x 27-3/8” D x 36-7/16” H
• Shiping weight: 415 lbs
• Up to 1825 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• 48”W wide profile
• Water-cooled, Stackable, 3 Phase
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Protected by H-GUARD Plus Antimicrobial Agent
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 8.4 amps (20 Amp Max fuse)
• 3.3 kwh/100 lbs.@ 90/70
• Three phase, 208-230v/60/3 (4 Wire Configuration)
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
