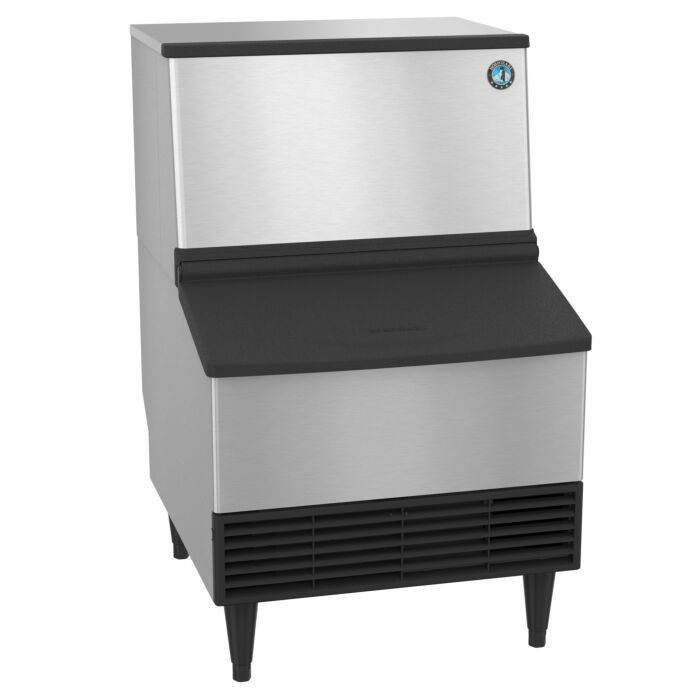

HOSHIZAKI KM-201BAH Ice Maker Air-cooled Self Contained Built in 80lb Storage Bin REPLACED

This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 80 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-201BAH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 24” W x 28” D x 39” H
• Up to 201 lbs of ice produced per 24 hours
• Up to 80 lbs of built-in storage capacity
• Slim, 24”W wide profile
• Air-cooled, Self Contained, Built in Storage Bin
• Produces crescent ice
• Durable stainless steel exterior, opening is ADA compliant
• Ice maker with built in storage
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Ice bin opening is ADA compliant
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 6.1 amps (15 Amp Max fuse)
• 7.5 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
