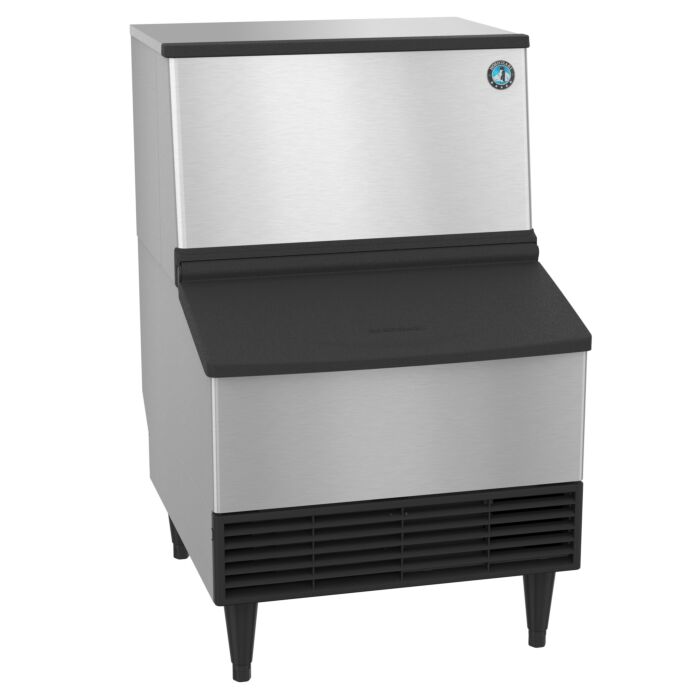

Hoshizaki KM-230BAJ, Ice Maker, Air-cooled, Self Contained, Built in Storage Bin Replaced-

The KM-230BAJ is capable of producing approximately 230 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 80 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-230BAJ requires a Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-201BAH.

Features & Specifications:

• • Dimensions: 24″ W x 28″ D x 39″ H
• • Up to 230 lbs of ice produced per 24 hours
• • Up to 80 lbs of built-in storage capacity (2.7ft3)
• • Produces crescent shaped ice cubes
• • Durable stainless steel exterior
• • Icemaker with built in storage
• • EverCheck™ alert system
• • CycleSaver™ design
• • R-404A refrigerant (11.3 oz. / 320 g)
• • Slide in door, ice bin opening is ADA compliant
• • Ambient temperature range: 45 – 100°F
• • Water temperature range: 45 – 90°F
• • Water pressure: 10 – 113psig
• • Voltage range: 104 – 127V
• • 6.5 amps (15 Amp Max fuse)
• • 7.78 kwh/100 lbs.@ 90/70
• • Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
• • Clean ice and easy maintenance lead to longer unit life span
• • Three Years: Parts & Labor warranty on entire machine.
• • Five Years: Parts & Labor warranty on evaporator.
