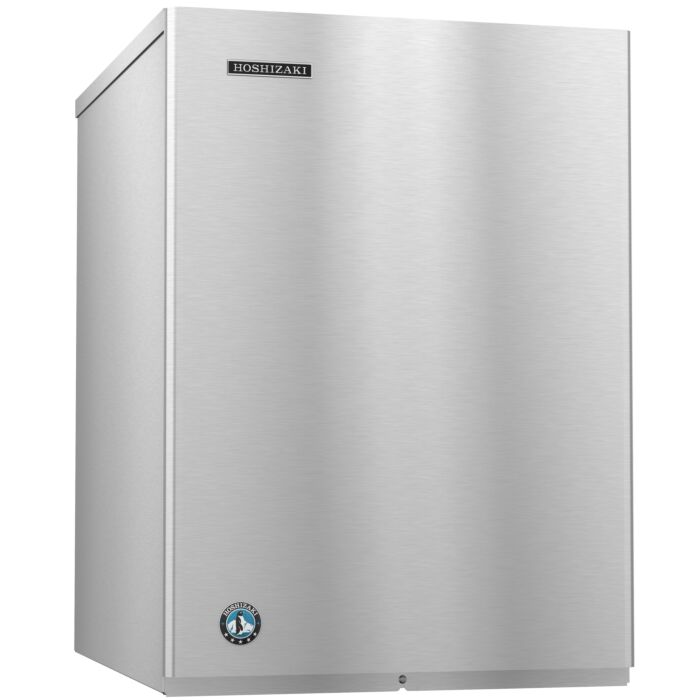

HOSHIZAKI KM-515MWJ, Ice Maker, Water-cooled, Slim Line Modular REPLACED

Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Water-cooled, Slim Line Modular ice maker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-515MWJ requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300 DB-130H, DB-200H, DM-200B.. Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 22” W x 27-3/8” D x 30-5/16” H
• Shipping weight: 175 lbs
• Up to 462 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Slim, 22”W wide profile
• Water-cooled, Slim Line Modular
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300 DB-130H, DB-200H, DM-200B.
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Protected by H-GUARD Plus Antimicrobial Agent
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 9.6 amps (20 Amp Max fuse)
• 5.14 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
