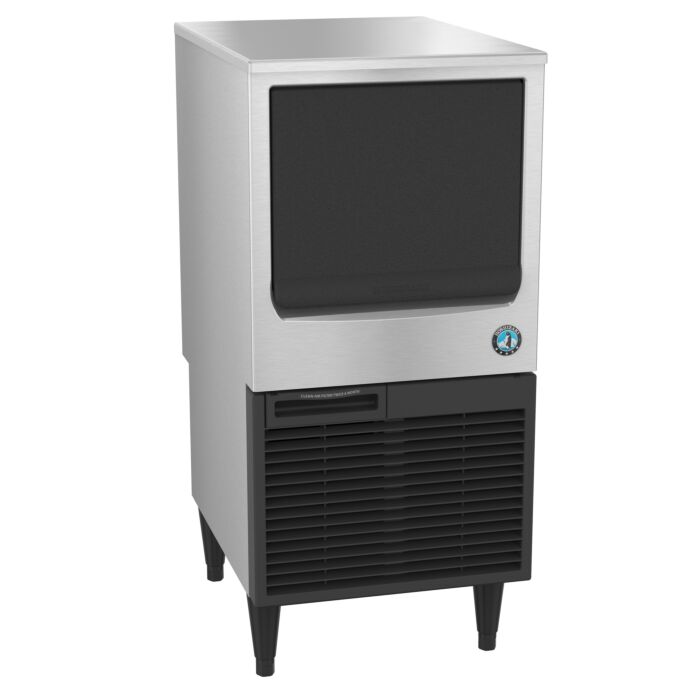

HOSHIZAKI KM-61BAH Ice Maker Air-cooled Self Contained Built in 38lb Storage Bin Replaced

This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 38 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-61BAH requires a Single phase, 115v/60/1 electrical connection. Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 17-3/4" W x 24-1/4" D x 39" H
• Up to 71 lbs of ice produced per 24 hours
• Up to 38 lbs of built-in storage capacity
• Slim, 17- 3/4 "W wide profile
• Air-cooled, Self Contained, Built in Storage Bin
• Produces crescent ice
• Slide in door with durable stainless steel exterior
• Ice maker with built in storage
• EverCheck™ alert system
• CycleSaver™ design
• R-134a refrigerant
• HS-5061 drain pump assembly, sold separately
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 3.4 amps (15 Amp Max fuse) • 10.6 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
