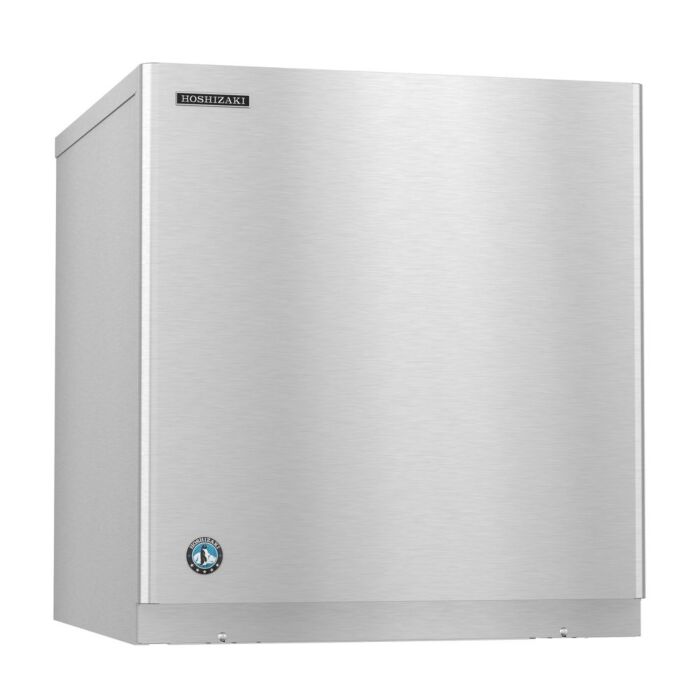

HOSHIZAKI KMD-410MAH Crescent Cube Ice Machine, Air-cooled, Modular

Our efficient stainless steel evaporators create our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular ice maker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-410MAH requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900 DB-200H Please consult the Specification Sheet for additional details.

Features & Specifications:

• Dimensions: 22” W x 24” D x 24” H
• Shipping weight: 161 lbs
• Up to 415 lbs of ice produced per 24 hours
• Air-cooled, Modular, 22” Wide Ice Maker
• Slim, 22 “W wide profile
• Air-cooled, Modular
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900 DB-200H
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Stainless steel evaporator
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8 amps (20 Amp Max fuse)
• 5.8 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
