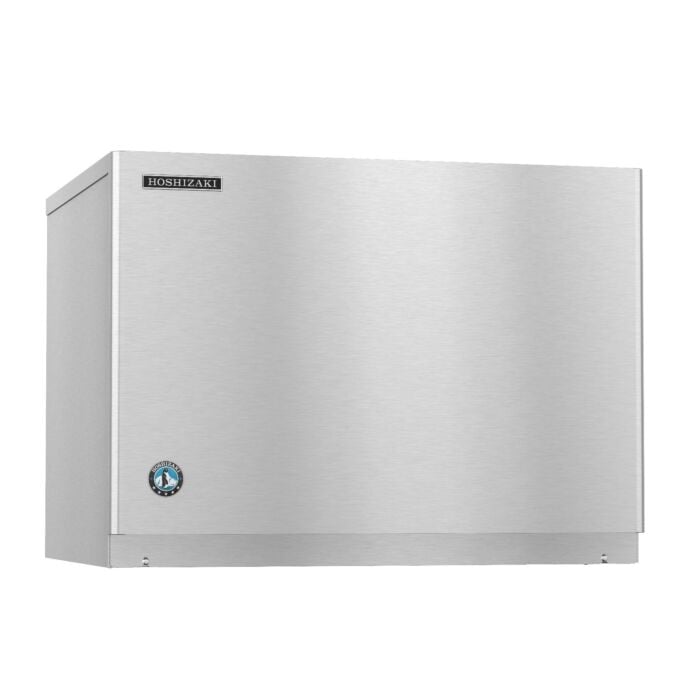

Hoshizaki KMD-530MRJ, Crescent Cuber Ice maker, Remote-cooled-498 lb/day

The KMD-530MRJ is capable of producing approximately 498 lbs of crescent cubed ice. Hoshizaki’s efficient stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-5F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-530MRJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.

Features & Specifications

• Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
• Up to 498 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300
• EverCheck™ alert system
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (3 lbs. 14 oz. / 1758 g)
• Heat Rejection:7670 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 12.4 amps (20 Amp Max fuse)
• 6.1 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.
