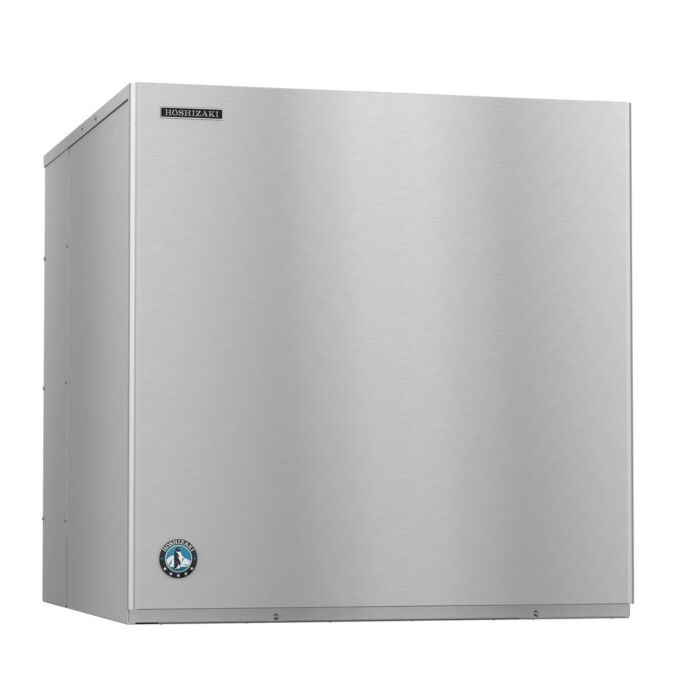

HOSHIZAKI KMH-2000SRH3, Ice Maker, Remote-cooled, Stackable, 3 Phase REPLACED

Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Remote-cooled with URC-22F (Sold Separately) ice maker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMH-2000SRH3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Kloppenberg 2115. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

*PLEASE NOTE* Ice bin and remote condenser not included.

Features & Specifications:

• Dimensions: 36” W x 40” D x 36- 7/16” H
• Shipping weight: 415 lbs
• Up to 1929 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• Slim, 36” W wide profile
• Remote-cooled with URC-22F (Sold Separately)
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: Kloppenberg 2115
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Protected by H-GUARD Plus Antimicrobial Agent
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 9.9 amps (20 Amp Max fuse)
• 3.7 kwh/100 lbs.@ 90/70
• Three phase, 208-230v/60/3 (4 Wire Configuration)
• ENERGY STAR Qualified
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
