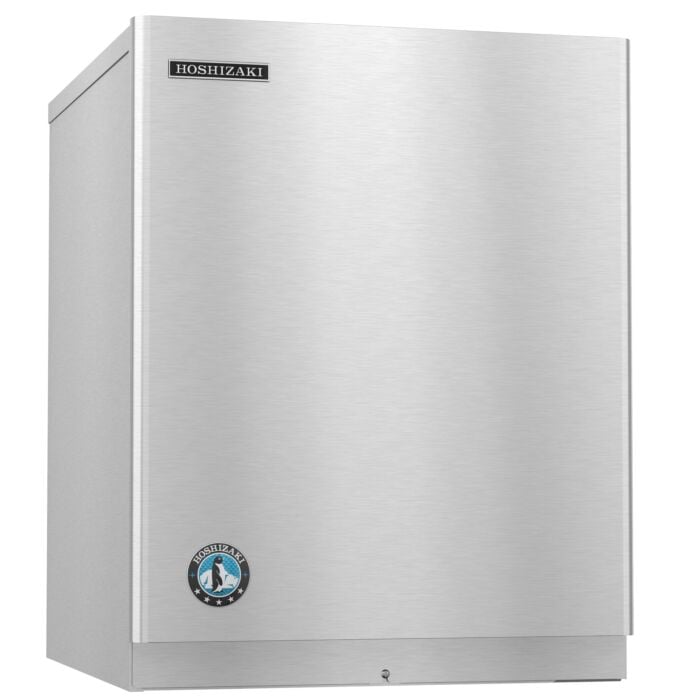

Hoshizaki KMS-822MLH Remote-cooled, Serenity Series Ice Maker-REPLACED

The KMS-822MLH is capable of producing approximately 839 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled, Serenity Series ice maker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-822MLH requires a Single phase, 115v/60/1 *Voltage supply for the KMS Ice Maker is supplied from the SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-200H. Remote condenser: SRK-10H.

*PLEASE NOTE* Ice bin and remote condenser not included.

KMS-822MLH Specification Sheet

KMS-822MLH Service Manual

KMS-822MLH Instruction Manual

KMS-822MLH Parts Manual

KMS-822MLH Freestyle Specifications

Features & Specifications:

• Dimensions: 22″ W x 24-5/8″ D x 28″ H
• Shipping weight: 273 lbs
• Up to 839 lbs of ice produced per 24 hours
• Remote-cooled, Serenity Series
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-200H
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Protected by H-GUARD Plus Antimicrobial Agent
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 11.5 amps (20 Amp Max fuse)
• 5.58 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 *Voltage supply for the KMS Ice Maker is supplied from the SRK Remote Condenser (4 Wire Configuration)
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.
