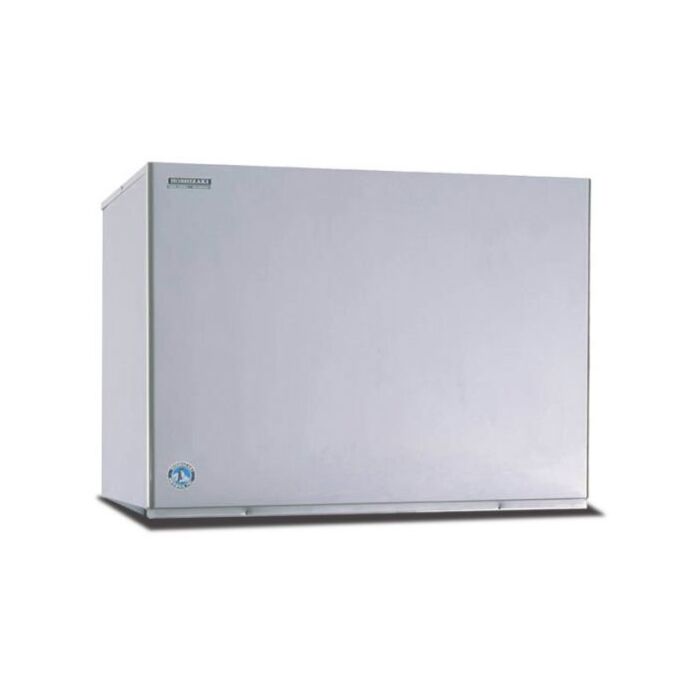

HOSHIZAKI KM-2500SRH3, Ice Maker, Remote-cooled REPLACED

The KM-2500SRH3 is capable of producing approximately 2424 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Remote-cooled with URC-23F (Sold Separately) ice maker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2500SRH3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650.

*PLEASE NOTE* Ice bin and remote condenser not included.

Features & Specifications:

• Dimensions: 48” W x 27-3/8” D x 36-7/16” H
• Shipping weight: 440 lbs
• Up to 2424 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• 48”W wide profile
• Remote-cooled with URC-23F (Sold Separately)
• Produces crescent ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Protected by H-GUARD Plus Antimicrobial Agent
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 17.7 amps (20 Amp Max fuse)
• 4.5 kwh/100 lbs.@ 90/70
• Three phase, 208-230v/60/3
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.

KM-2500SRH3 Specification Sheet

KM-2500SRH3 Service Manual

KM-2500SRH3 Instruction Manual

KM-2500SRH3 Parts Manual
