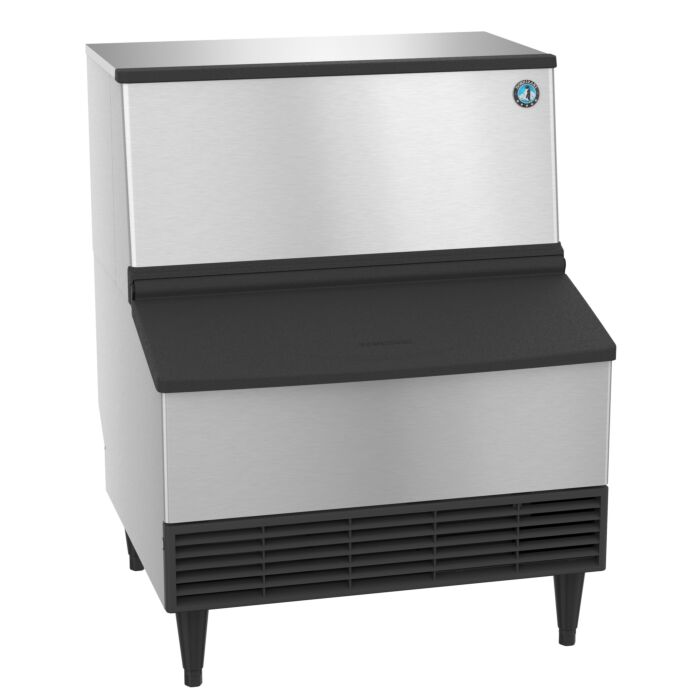

HOSHIZAKI KM-260BAH Ice Maker Air-cooled Self Contained Built in 100lb Storage Bin REPLACED

This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 100 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-260BAH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. Please consult the Specification Sheet for additional details.

KM-260BAH Specification Sheet

KM-260BAH  Service Manual

KM-260BAH Instruction Manual

KM-260BAH  Parts List

Features & Specifications:

• Dimensions: 30” W x 28” D x 39” H
• Up to 263 lbs of ice produced per 24 hours
• Up to 100 lbs of built-in storage capacity
• 30”W wide profile
• Air-cooled, Self Contained, Built in Storage Bin
• Produces crescent ice
• Durable stainless steel exterior
• Ice maker with built in storage
• EverCheck™ alert system
• CycleSaver™ design
• R-404a refrigerant
• Ice bin opening is ADA compliant
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 7.6 amps (15 Amp Max fuse)
• 7.6 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1 (4 Wire Configuration)
• Three Years: Parts & Labor on entire machine.
• Five Years: Parts & Labor on evaporator.
